Advanced Propulsion Assembly Machine

• C/T: 5.5S • Operator: 1
• CPK > 2 • Quality Ratio: 99.5%

This is an indexing dial machine to assemble the orifice into the GDI upper housing as a sub-assembly. One ABB 6-Axis robot is employed in the center of machine for product handling. The machine has 8 index positions including below process.

Machine Process:

ABB robot load/unload

Laser check

Vision check

Servo pressing

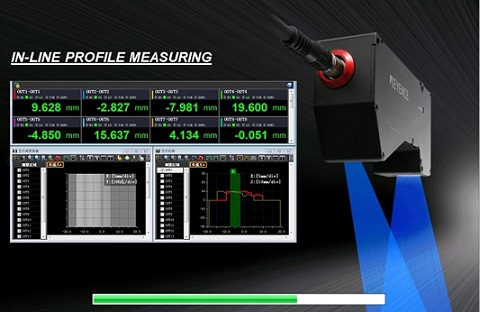

2D scanner depth check

Vacuum cleaning
